Microservices Architecture Diagram Template
Sketch your microservice topology — API gateway, independent services, message bus, and per-service databases. Great for architecture reviews and onboarding.
Use this templateWhat you get
- API Gateway at the entry point
- Message bus connecting async services
- Per-service database isolation
What this template is for
A microservices architecture diagram helps teams understand how independently deployed services communicate, where data is stored, and which infrastructure components sit between users and business logic. This template includes a client, API gateway, service layer, message bus, and per-service databases. Use it when designing a new distributed system, documenting a production platform, or explaining service ownership and data boundaries to a growing engineering team.
When to use this template
- Plan the first version of a microservices architecture before services are split from a monolith.
- Document service ownership and database boundaries for a growing backend team.
- Explain how synchronous API calls and asynchronous events work together.
- Review coupling between services before adding a new business capability.
- Prepare a system design interview answer that uses service boundaries and data ownership clearly.
How to use it
- 1Start with the client and API gateway or load balancer at the top of the diagram.
- 2Add business services as separate nodes and group them into a service layer.
- 3Give each stateful service its own database when ownership matters.
- 4Add a message bus for asynchronous communication and event fan-out.
- 5Draw synchronous request paths separately from asynchronous event paths.
- 6Label the key protocols or contracts on important edges.
Quick example

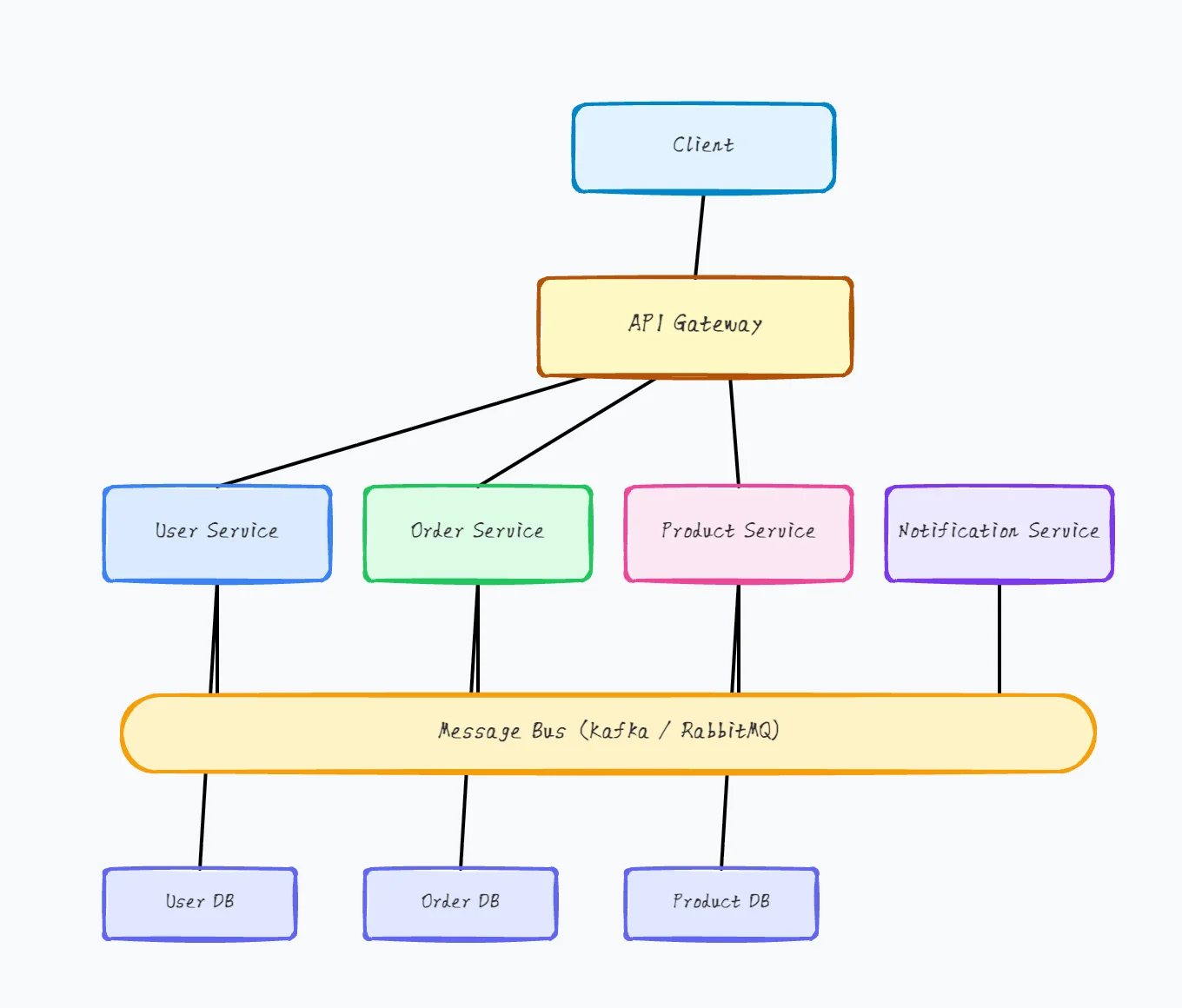

E-commerce microservices architecture
Related resources
Microservices vs Monolith Diagram
Compare service boundaries, deployment complexity, data ownership, and operational trade-offs side by side.
System Design Template
Zoom out from service boundaries and map the full product architecture, including clients, caches, queues, and databases.
Event-Driven Architecture Template
Use this when asynchronous events are the main way your services coordinate.
How it compares to similar tools
Microservices diagram vs. system design diagram
A system design diagram can include any architecture style. A microservices diagram specifically emphasizes service boundaries, independent deployment, API contracts, event flows, and data ownership per service.
Microservices vs. monolith
A monolith keeps the application and usually the database centralized. Microservices split capabilities into independently deployed services, often with separate data stores. The diagram should make that operational trade-off visible, not just show more boxes.
Architecture diagram vs. sequence diagram
Architecture diagrams show stable structure: services and infrastructure. Sequence diagrams show one runtime scenario: which service calls which, in what order. Use both when a workflow spans multiple services.
Common mistakes to avoid
Drawing services but keeping one shared database
If every service reads and writes the same database tables, the system is still tightly coupled. The diagram should expose data ownership, otherwise the hardest microservices decision is hidden.
Mixing sync calls and async events without labels
A REST request and an event published to a queue behave very differently. Use labels or line styles so reviewers can see latency, consistency, and retry implications.
Adding too many services too early
A diagram with twenty tiny services can look sophisticated while creating operational overhead. Keep the first diagram at domain-boundary level, then split only where team ownership or scaling needs justify it.
Forgetting observability and failure paths
Microservices fail at the seams: network calls, queues, retries, and partial outages. Add monitoring, tracing, and fallback notes where they matter instead of drawing only the happy path.
Frequently asked questions
What should a microservices architecture diagram include?+
Include clients, gateways, business services, data stores, message buses, external systems, and the main communication paths. Label whether important edges are synchronous requests or asynchronous events.
Do all microservices need their own database?+
Not always, but each service should have clear data ownership. Shared physical infrastructure is possible; shared tables owned by everyone usually create coupling that defeats the point of microservices.
When should I use a microservices diagram?+
Use it when you need to reason about service boundaries, deployment independence, data ownership, scaling, or migration from a monolith. For a single request flow, add a sequence diagram.
How detailed should the diagram be?+
Start with 5-10 major services and shared infrastructure. If a workflow needs deeper detail, make a second diagram for that workflow instead of crowding the overview.
Can this template be used for system design interviews?+
Yes. It gives you a clear structure for API gateway, service layer, databases, and event bus. Add scale assumptions, bottlenecks, and trade-offs in notes around the diagram.
